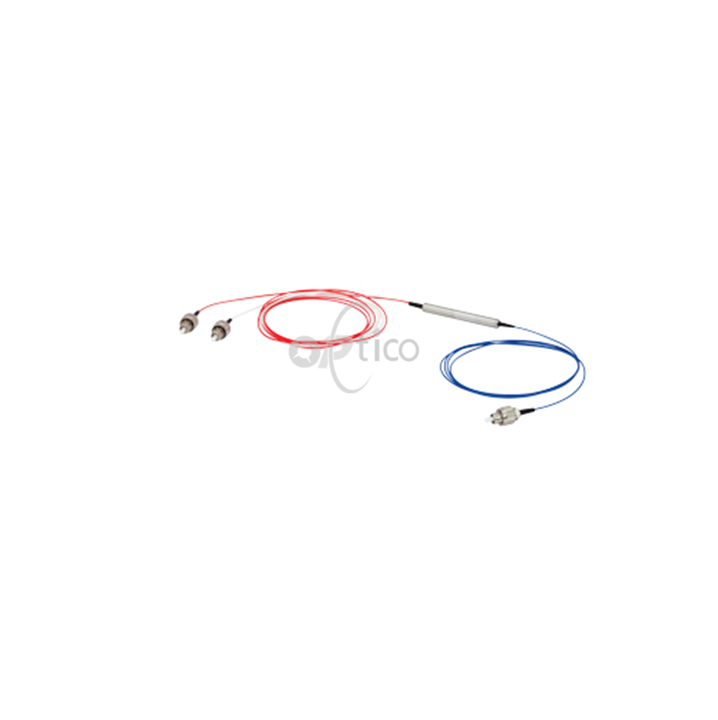

3 Port Sikilaritè 1310nm
OPTICO' single Mòd (SM) Optic Circulators yo ki pa resipwòk, direksyonèl, twa-pò aparèy yo itilize a lajè ranje optik konfigirasyon anpil aplikasyon SM optik sikilatwa sant vag 1064% 2c 1310 (O-Band)% 2c oswa 1550 nm (C-Band). Addition sa yo SM sikilatwa disponib disponib unterminate, FC/PC 2fPC konektè, oswa FC/APC konektè.
OPTICO' s Single Mode (SM) Optic Circulators are non-reciprocating, one directional, three-port devices that are used in a wide range of optical setups and for numerous applications. Our SM optical circulators have a center wavelength of 1064, 1310 (O-Band), or 1550 nm (C-Band). Additionally these SM optical circulators are available unterminated, with FC/PC connectors, or with FC/APC connectors.An optical circulator is analogous to an electronic circulator and both perform similar functions. An optical circulator is a three-port device that allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
| Santral vaglengt(nm) | 1310nm |
| Band Width（nm) | ±30 |
| Max insertion pèt(dB) | 0.8 |
| Izolasyon (dB) | Pi gran egal 40 |
| Direcivity (1-2-3) | Pi gran egal 50 |
| Mwens pase oswa egal 0.15 | |
| PMD | Mwens pase oswa egal 0.1ps |
| Retounen pèt(dB) | Pi gran egal 50 |
| Max Optik Pouvwa(mW) | Mwens oswa egal 300 |
| Opere Relatif Imidite | 5~60% |
Segondè izolasyon
Kontra enfòmèl ant konpak
Segondè ak fyab
Rankontre TelcordiaGR-1209 GR-1221, satisfè ROHS estanda
100% 25 teste anvan akouchman
DWDM System
Single fib bidirectional transmisyon system
